CupLock Systems
Standard/Vertical
- Main vertical support member.
- End spigot for accurate alignment.
- 1.0m to 3.0m.
Ledger/Horizontal
- Connects standards longitudinally.
- Secure wedge-type "Banana" end fixings.
- 0.6m to 2.5m.
Intermediate Transom
- Supports boards/decking between main transoms.
- Available in GI (galvanized) and painted finish.
- Standard lengths to suit 0.6m–1.5m bay spacing.
Spigot Connector with Nut & Bolt
- Joins standard sections end-to-end for height extension.
- Secured with nut-and-bolt fixing for added rigidity.
- Galvanized steel construction.
Hop Up Bracket
- Extends platform width for additional working space.
- Available in 2-board and 3-board widths.
- Bolts directly onto the standard for quick fitting.
Cantilever Frame
- Extends scaffold reach beyond the main structure line.
- Available in 1.0m and 1.5m projection lengths.
- Steel construction rated for standard platform loads.
Beam Ladder
- Lattice beam used to span gaps in slab support systems.
- Available in GI and painted finish.
- Lightweight design for fast slab formwork assembly.
Unit Beam
- Primary load-bearing beam for slab and deck support.
- Available in GI and painted finish.
- Designed for use with drop heads and props.
Steel Ladder
- Fixed access ladder section for vertical climbing.
- Available in GI and painted finish.
- Standard rung spacing for safe, consistent access.
Adjustable Fork Head
- Four-way head for supporting timber/steel formwork beams.
- Adjustable spindle for fine height leveling.
- Compatible with standard prop and standard systems.
Beam Bracket
- Connects beams to the scaffold standard at a fixed point.
- Galvanized steel for outdoor/site durability.
- Bolt-fixed for secure, repeatable assembly.
Fixed U Head
- Non-adjustable U-shaped head for beam/plank support.
- Spigot-fits directly into the standard or prop.
- Galvanized steel construction.
Floor Bracket
- Anchors the base of the scaffold structure to the floor/slab.
- Galvanized steel for long-term outdoor use.
- Standard bolt-hole pattern for quick fixing.
Drop Head
- Allows early formwork beam removal while props remain in place.
- Adjustable height range for slab thickness variation.
- Speeds up formwork strike and re-use cycle.
Push-Pull Prop Connector
- Provides lateral bracing for wall and column formwork.
- Single or double-brace configuration.
- Adjustable length up to 6m.
Basejack
- Adjustable base support for leveling on uneven ground.
- Available in 660mm and 760mm extension ranges.
- Threaded spindle with load-bearing base plate.
Cross Brace
- Diagonal bracing for lateral stability on light-duty frames.
- Galvanized steel tube construction.
- Standard lengths matched to frame width.
Horizontal Brace
- Horizontal bracing member for light-duty scaffold frames.
- Galvanized steel tube construction.
- Connects directly to frame uprights.
Italian Frame
- Lightweight H-frame for fast-erect mobile scaffolding.
- Galvanized steel tube construction.
- Standard width/height to suit mobile tower assemblies.
Korean Frame
- Lightweight H-frame, alternate standard sizing to Italian Frame.
- Galvanized steel tube construction.
- Designed for quick-erect light-duty access towers.
Tubes & Fittings

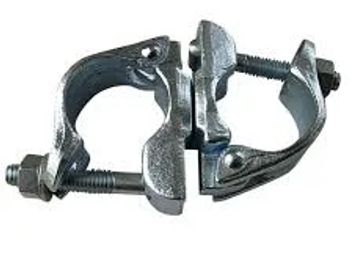

Swivel Coupler / Solivel Couples (Drop Forged)
- Connects two scaffold tubes at any required angle for flexible bracing.
- Robust drop-forged construction ensuring high safe-working-load capacity.
Double Coupler (Fixed Coupler)
- Joins two tubes at a fixed 90° angle for rigid connections.
- Forged steel construction for high load capacity.
- Standard fit for 48.3mm scaffold tube.
Sleeve Coupler
- Joins two tubes end-to-end for length extension.
- Internal/external sleeve design for a flush, secure fit.
- Galvanized steel construction.
Putlog Coupler
- Connects a putlog or transom to the main tube at 90°.
- Single-bolt design for quick fixing.
- Forged steel construction.
Beam Clamp
- Clamps scaffold tube directly to structural steel beams.
- Adjustable jaw to fit varying beam flange widths.
- Drop-forged steel for secure, high-load gripping.
BRC (Board Retaining Coupler)
- Secures boards/decking in place on the transom.
- Prevents board slip and lateral movement.
- Galvanized steel construction.
Pressed Swivel Coupler
- Lightweight pressed-steel alternative to the forged swivel coupler.
- Joins tubes at any angle.
- Standard fit for 48.3mm scaffold tube.
Flange Clamp
- Clamps scaffold tube to flanged steel sections.
- Adjustable to suit varying flange thicknesses.
- Drop-forged steel construction.
Accessories
Tie Rod
- Connects opposing formwork panels to hold pour width.
- Available in standard diameters from 15mm to 22mm.
- High-tensile steel, threaded for nut/waler-plate fixing
Wing Nut
- Tightens onto tie rod threads for quick hand fastening.
- Cast or forged steel construction.
- Matched threading to standard tie rod diameters.
Tie Plate
- Distributes load from the tie rod onto the waler/formwork face.
- Steel plate construction, sized to suit waler profile.
- Prevents point-loading and panel deformation.
Water Stopper
- Seals the tie rod penetration point to prevent water/grout leakage.
- Fits standard tie rod diameters.
- Rubber or steel-disc construction.
Bolt and Nut
- General-purpose fixing for coupler and frame connections.
- High-tensile steel, zinc or hot-dip galvanized finish.
- Standard sizes to match scaffold/formwork fittings.
Hexagonal Nut
- Standard hex nut for bolted scaffold/formwork connections.
- High-tensile steel construction.
- Available in metric sizes to match standard bolts.
Anchor Nut
- Cast into concrete to provide a fixed threaded anchor point.
- High-tensile steel construction.
- Used for tie rod and formwork anchoring systems.
Spigot Washer Type
- Seats between spigot and standard for secure alignment.
- Steel construction, sized to standard spigot diameter.
- Prevents play and wear at the connection point.
Joint Pin
- Locks spigot connections in place to prevent accidental separation.
- High-tensile steel, drop-in design.
- Standard fit across CupLok spigot sizes.
Ladder Clamp
- Secures access ladders to the scaffold structure.
- Adjustable jaw to fit standard tube diameters.
- Drop-forged steel construction.
Shuttering Clamp
- Clamps formwork panels together at the joint line.
- Adjustable for varying panel thicknesses.
- Heavy-duty steel construction.
Universal Clamp
- Multi-purpose clamp for tube-to-tube or tube-to-fitting connections.
- Adjustable jaw for varying diameters.
- Drop-forged steel construction.
Wheel (Heavy Duty)
- Caster wheel for mobile scaffold towers and frames.
- Heavy-duty rubber or PU tread with steel hub.
- Built-in locking brake for on-site stability.
Fork Way Head
- Four-way head for distributing beam loads across a prop or standard.
- Steel construction, fixed or adjustable spindle options.
- Compatible with standard formwork beam sizes.
Connector
- General-purpose fitting for joining scaffold/formwork components.
- Steel construction, sized to standard tube/fitting dimensions.
- Quick-fit design for fast on-site assembly.
Universal Jack
- Threaded prop stem used with a U Head or Fork Head for adjustable support.
- Adjustable height range, typically 300mm–600mm extension.
- High-tensile steel, hot-dip galvanized finish.
Base Plate
- Flat steel plate distributing standard/prop load to the ground.
- Standard size to suit 48.3mm tube diameter.
- Hot-dip galvanized steel, fixed (non-adjustable) design
Base Adaptor
- Fixed spigot/socket connector joining a standard to a base plate or castor.
- No screw thread — rigid, non-adjustable fit.
- Galvanized steel construction.
Adjustable U-Head
- U-shaped head with screw jack for height-adjustable beam support.
- Adjustable range, typically 300mm–600mm.
- Compatible with CupLok and standard prop systems.
Fork Head (Standard)
- Four-way fork support for timber/steel formwork beams.
- Fixed spigot connection, no screw adjustment.
- Steel plate and angle-iron construction.
Fork Head (Braced)
- Reinforced fork head with additional bracing for higher load capacity.
- Fixed spigot connection.
- Heavy-duty steel construction for shoring applications.
