CupLock Scaffolding

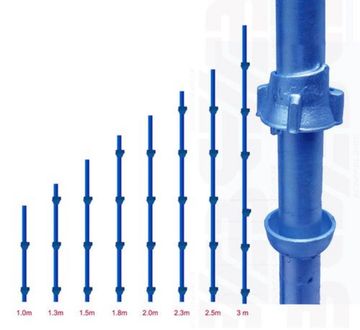

• The Standard is the vertical member of the scaffold with a spigot (either round or box type) at one end for accurate alignment.
• Cuplock Standard sizes: 3m, 2.5m, 2m,1.5m, 1m.

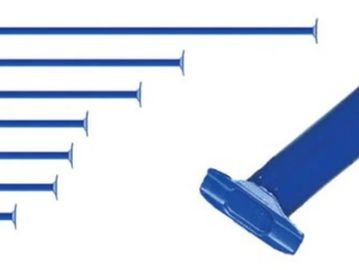

• The Ledger is used to connect the standard in a longitudinal direction. It is made from scaffold tube with wedge “Banana type” fixing at each end.
• Cuplock Ledger sizes: 2.5m, 1.8m, 1.6m,1.3m, 1.2m, 1m, 0.9m, 0.6m.

It comprises of a primary head that remains in contact with the concrete slab and a secondary head which permits early striking. The drop heads fits on the scaffolding and enables the removal of infills and beams in just 3 to 4 days of pouring, keeping the support intact.

• Adjustable Base Jack 760 mm, 600 mm
• Universal Jack 760mm , 600 mm
• U Head Jack 150mm, 170mm, 100mm
• Fork Head 760 mm, 600 mm

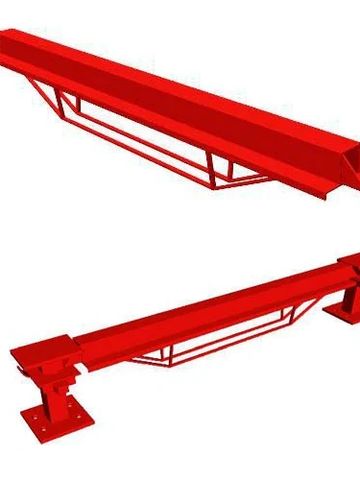

• Decking Beam 2.5m, 1.8m, 1.2m
• Infill Beam 1.7m, 1.5m, 1.2m, 0.9m, 0.8m, 0.5m

•  Transom 2.5m, 1.8m, 1.3m, 1.2m

• Beam Brackets are used to provide support to beam formwork and also support scaffolding structure
• Used when support on the base slab is not possible specially when you drop beams around the buildings.
